Transform Your Keyboard: Custom Media Controls WITHOUT Special Keys

Are you tired of constantly alt-tabbing between windows just to pause your music? Or perhaps you have a keyboard without dedicated media keys? In this comprehensive guide, we’ll show you how to transform any keyboard into a powerful media controller using AutoHotkey - completely free and beginner-friendly.

Walkthrough Video

Table of Contents

• Why Custom Media Controls Matter
• What You’ll Need
• Step-by-Step Setup Guide
• Customizing Your Shortcuts
• Troubleshooting Common Issues
• Advanced Tips and Tricks

Why Custom Media Controls Matter

In today’s multitasking work environment, efficiency is key. Having to switch windows just to control your music playback can break your concentration and workflow. Custom media controls solve this problem by letting you control your media from any application, instantly boosting your productivity.

What You’ll Need

• Windows PC (Windows 10 or 11 recommended)
• AutoHotkey Version 2 (free download)
• 5 minutes of your time
• No coding experience required!

Step-by-Step Setup Guide

1. Installing AutoHotkey

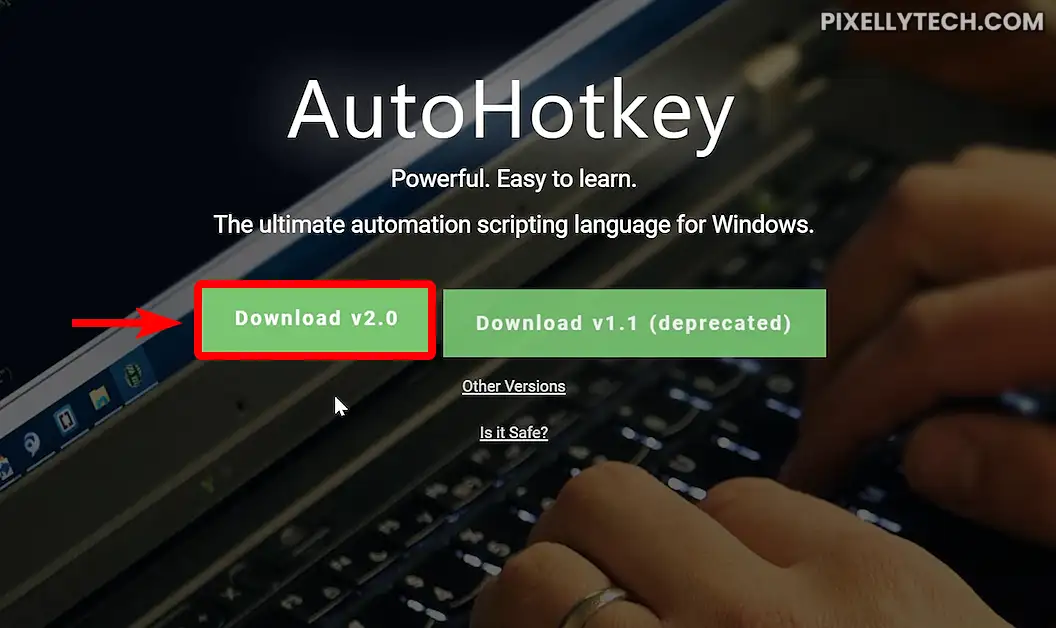

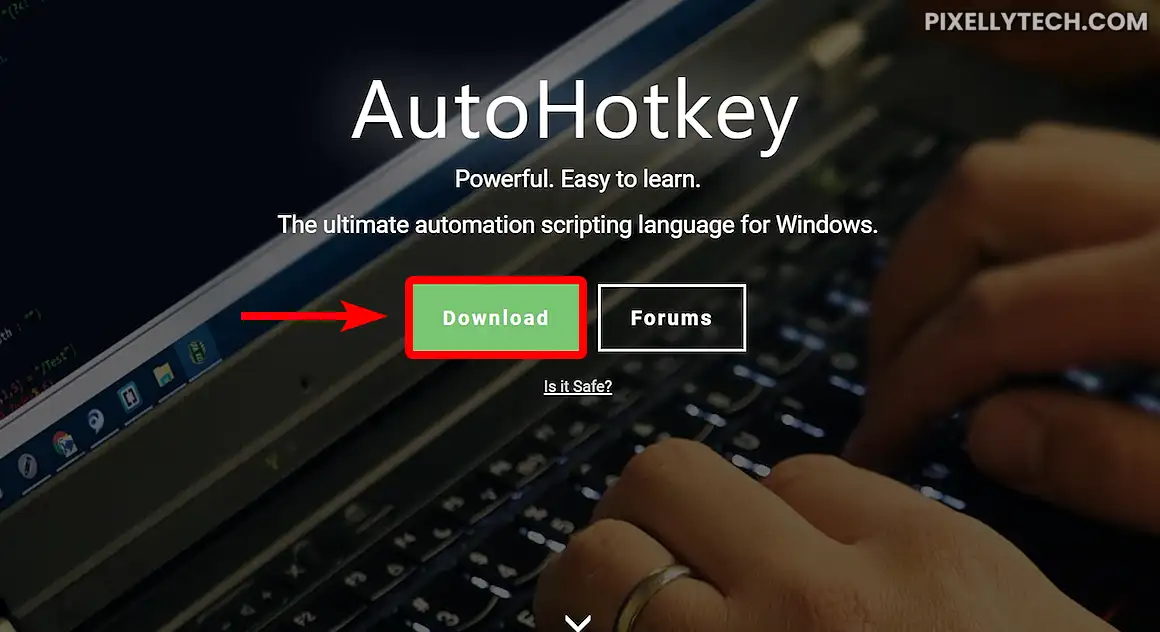

To get started, head over to the official AutoHotkey website autohotkey.com . Look for AutoHotkey Version 2, which is the latest and recommended version.

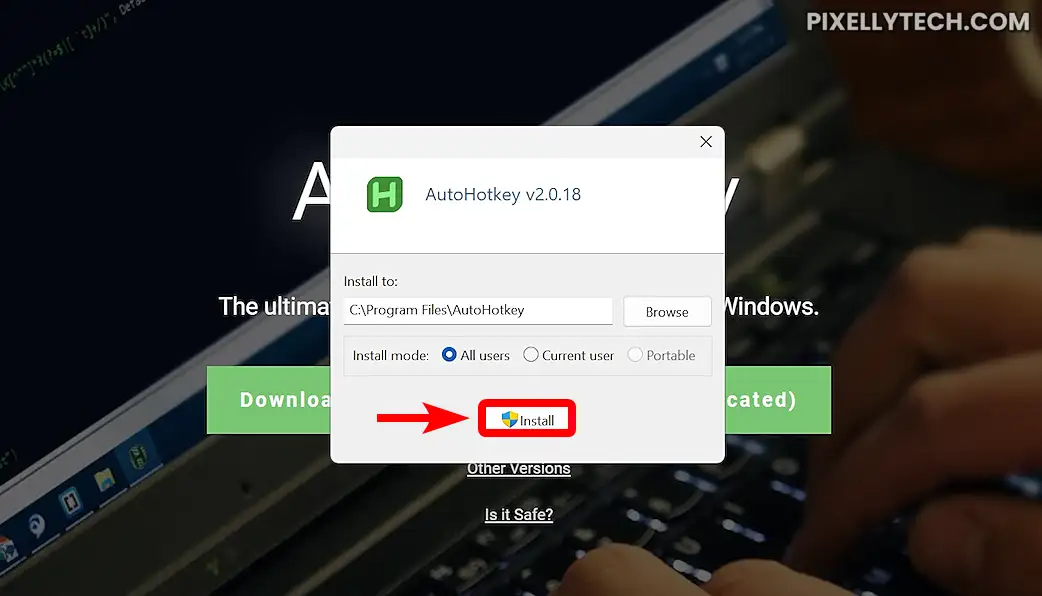

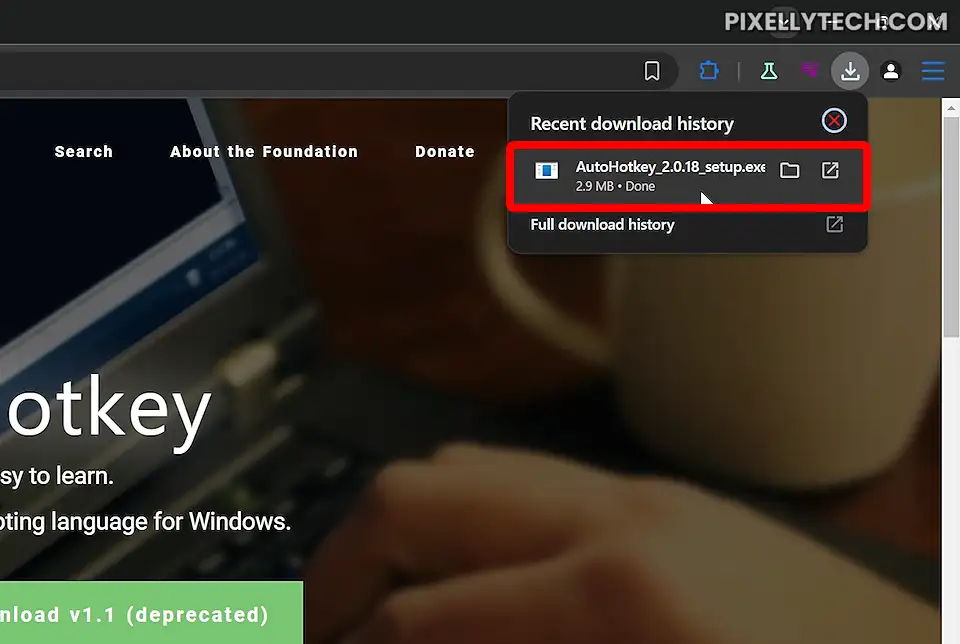

Once the download completes, simply run the installer and click install.

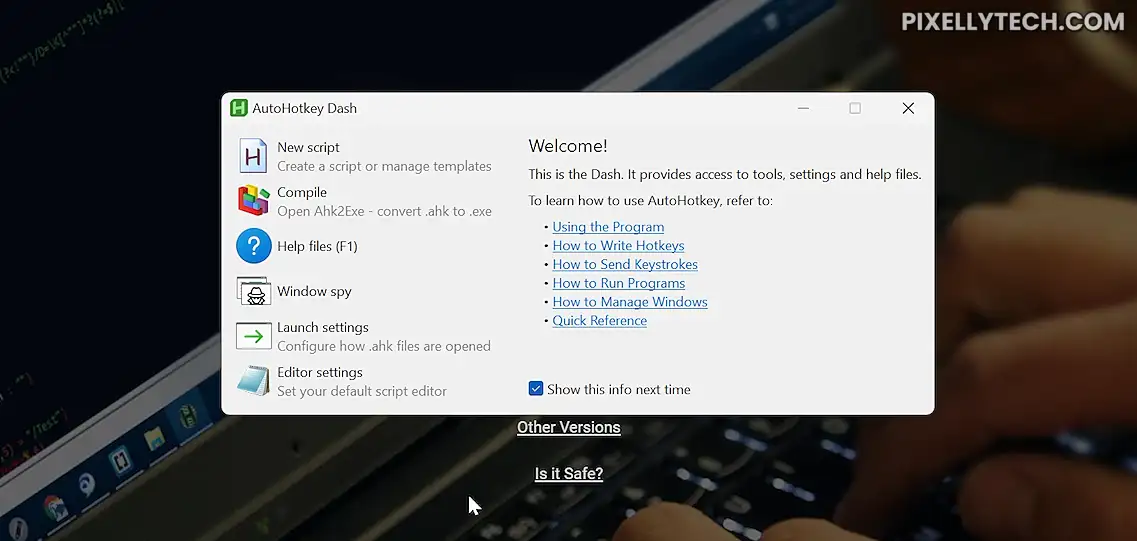

After installation, AutoHotkey will display a help window. You can safely close this for now as we’ll be creating our own script from scratch.

2. Creating Your Media Control Script

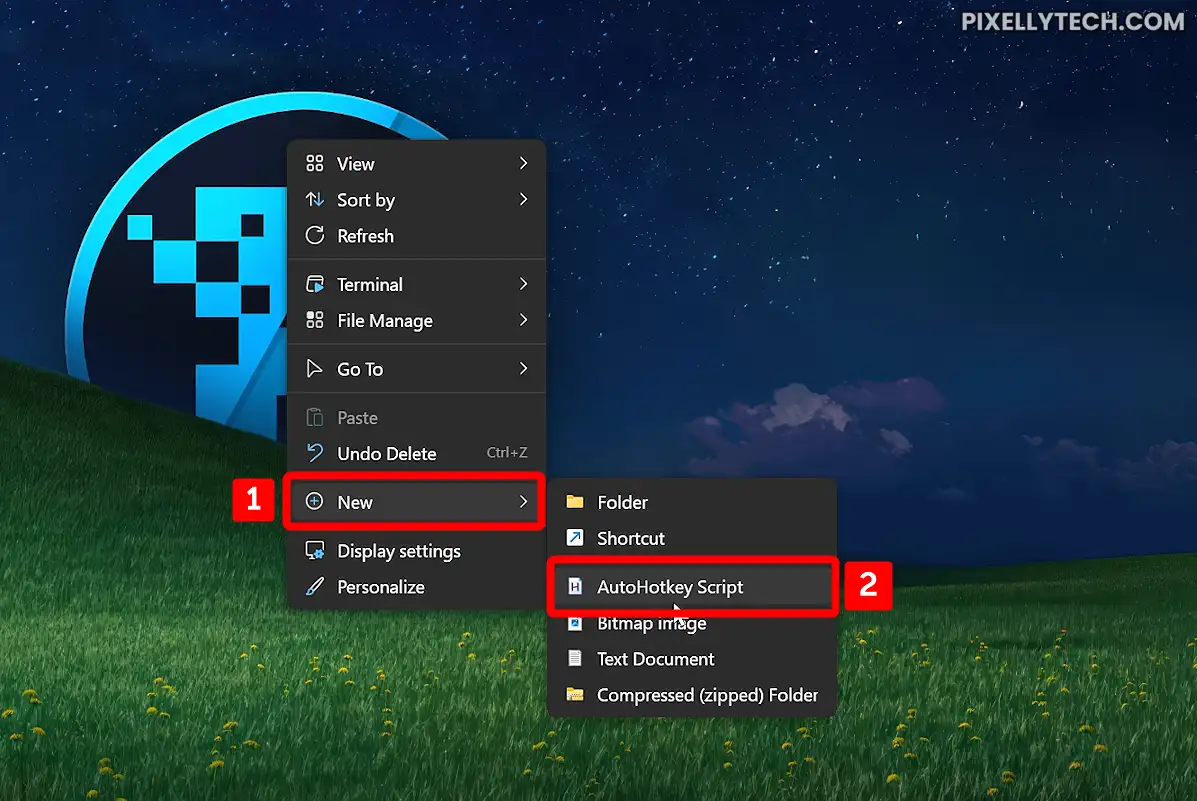

To create your script, right-click on an empty space on your desktop and navigate to the “New” menu, where you’ll find the “AutoHotkey Script” option.

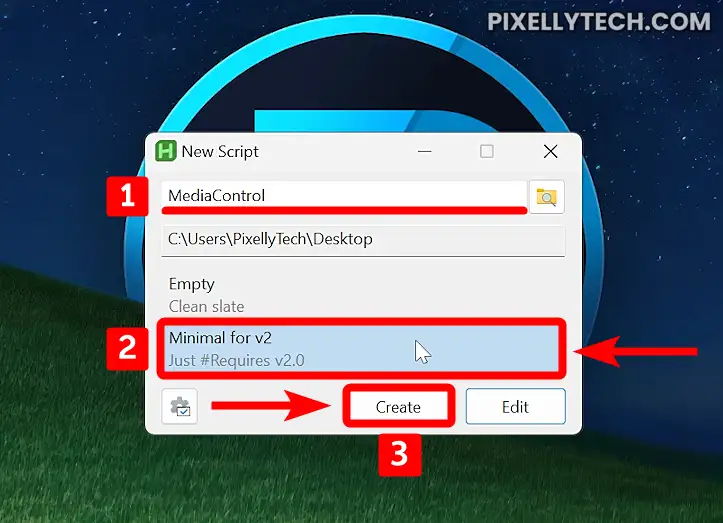

Select this and name your new script something like “MediaControl,” choose the minimal template and click create – this will give us a clean slate to work with for our media control shortcuts.

3. Setting Up the Shortcuts

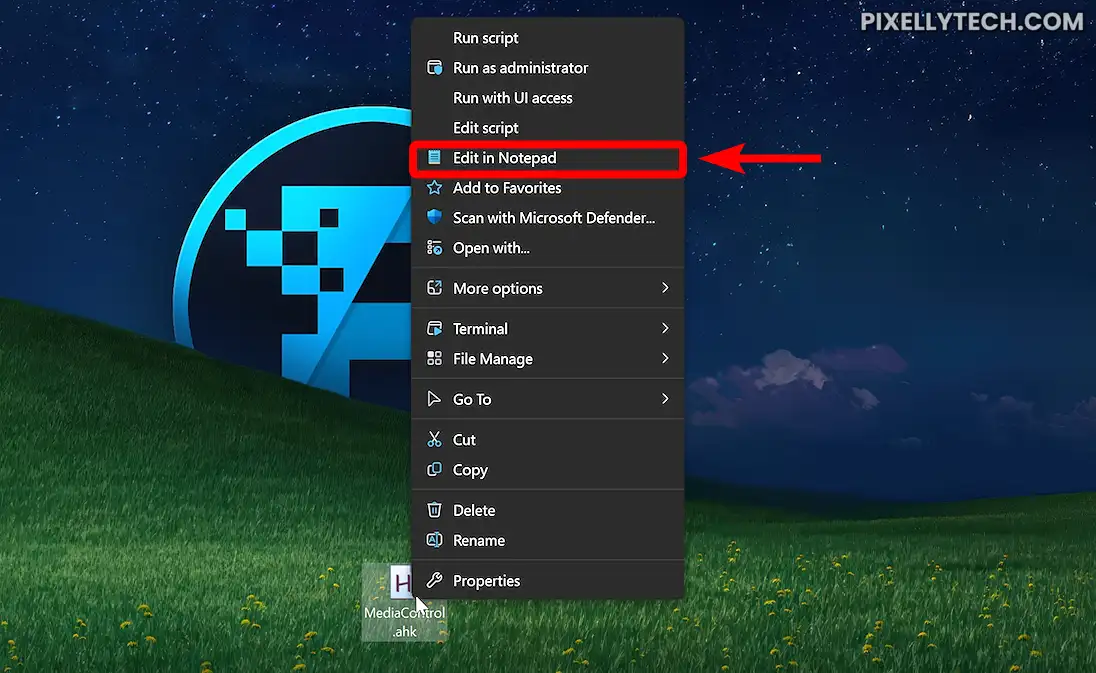

Right-click on your new sciprt, and select “Edit in Notepad”.

Copy and paste this code into your script:

!Del::Send "{Media_Play_Pause}"    ; Alt + Delete to Play/Pause
!End::Send "{Media_Prev}"             ; Alt + End for Previous Track
!Home::Send "{Media_Next}"            ; Alt + Home for Next Track
!Ins::Send "{Volume_Mute}"         ; Alt + Insert to Mute/Unmute
!PgUp::Send "{Volume_Up}"             ; Alt + Page Up for Volume Up
!PgDn::Send "{Volume_Down}"           ; Alt + Page Down for Volume Down

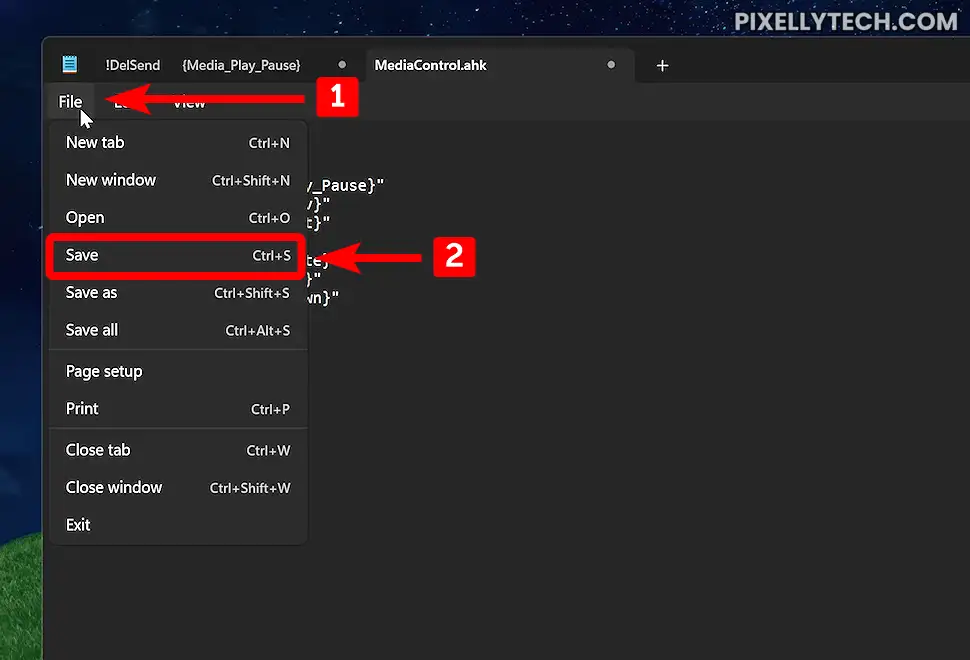

Don’t forget to save your script.

Now run the script by double-clicking on it, you can check the systray to make sure that the script is running.

Default Keyboard Shortcuts

• Alt + Delete: Play/Pause
• Alt + End: Previous Track
• Alt + Home: Next Track
• Alt + Insert: Mute/Unmute
• Alt + Page Up: Volume Up
• Alt + Page Down: Volume Down

Customizing Your Shortcuts

Want to modify the shortcuts to better suit your needs? Start by visiting the AutoHotkey Key List reference page List of Keys , which contains a comprehensive list of all available keyboard codes. Browse through this reference to find the key codes that better match your preferences. Once you’ve identified your desired keys copy it

Head back to your script and replace the existing key combinations with your chosen ones. After making your changes, simply save the script and reload it to apply your new custom shortcuts.

Example Custom Configuration

!Up::Send "{Volume_Up}"       ; Changed from Page Up to Up Arrow
!Down::Send "{Volume_Down}"   ; Changed from Page Down to Down Arrow

Auto-Starting with Windows

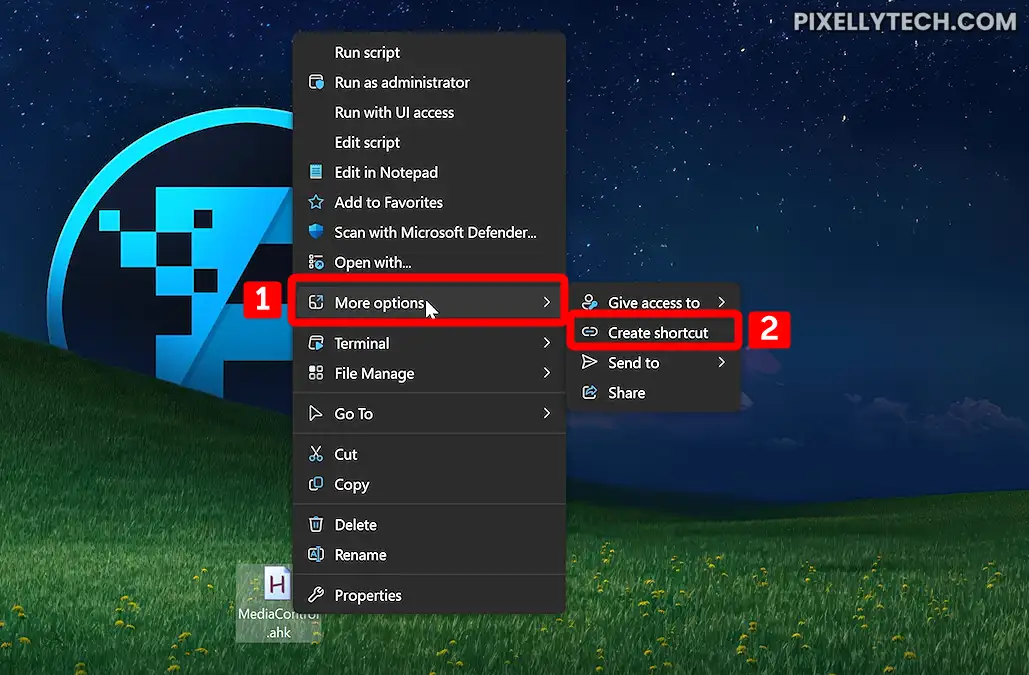

To make your media controls automatically available every time you start your computer, you’ll need to set up the script to launch on startup. First, create a shortcut of your script by right-clicking it and selecting “Create shortcut.”

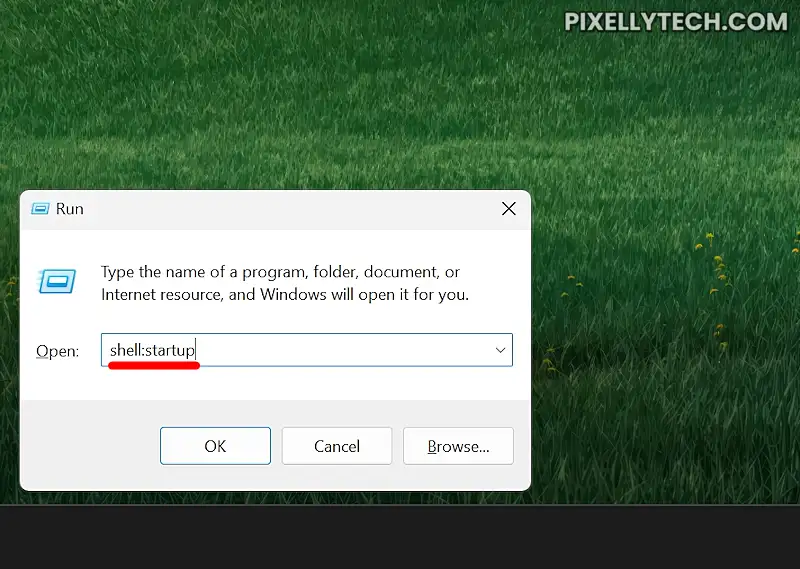

Then, open the Windows Run dialog by pressing Windows + R on your keyboard, and type “shell:startup” into the box. Then press Enter.

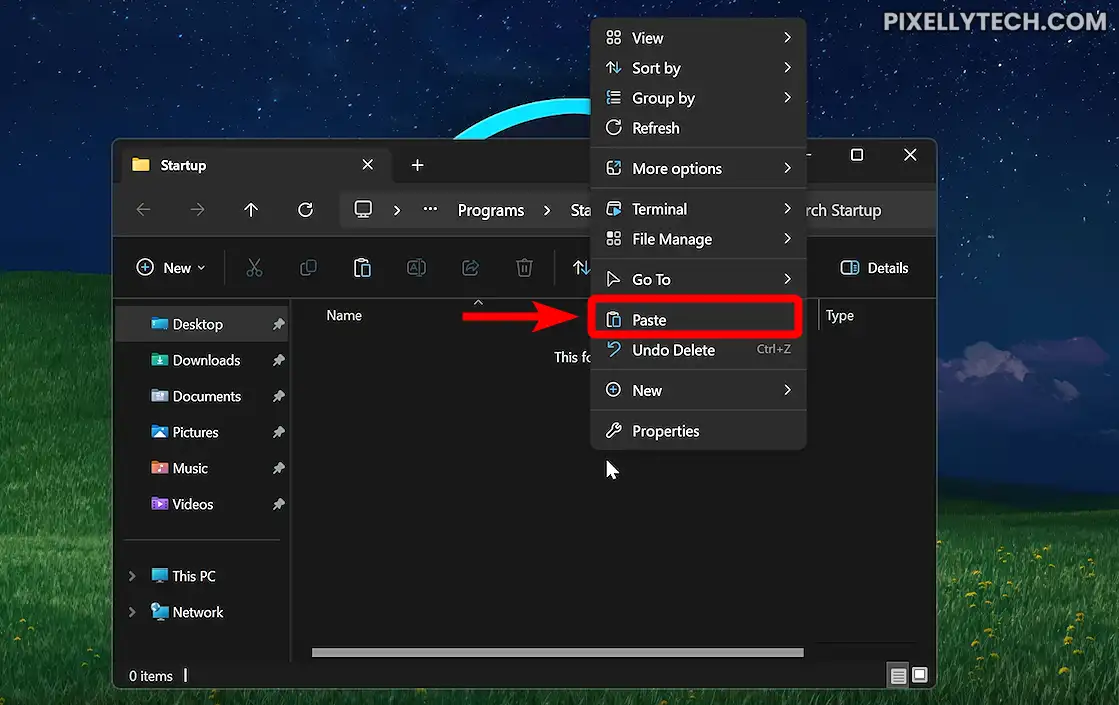

This opens your Windows startup folder, where you can simply drag and drop your script’s shortcut, or copy and paste it.

Now your media controls will be ready to use automatically whenever you start your PC.

Troubleshooting Common Issues

Script Not Working?

• Ensure AutoHotkey is properly installed
• Check if the script is running (look for the icon in system tray)
• Verify there are no conflicting shortcuts
• Try running the script as administrator

Media Keys Not Responding?

• Make sure your media player supports standard media key inputs
• Check if other applications are intercepting the commands
• Verify the script syntax is correct

Conclusion

Custom media controls are a game-changer for productivity and convenience. With this setup, you’ll never have to interrupt your workflow to control your music again. The best part? It’s completely free and takes just minutes to set up.
